Forming Technologies
![20210518007](http://www.shym.co.kr/en/wp-content/uploads/sites/2/2021/05/20210518007.png)

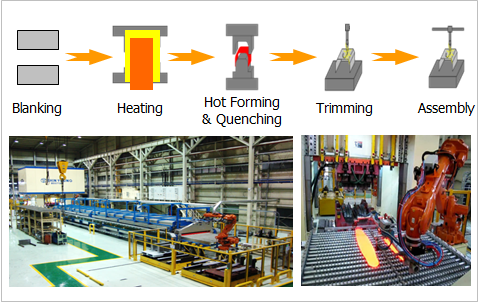

HOT PRESS FORMING |
- To overcome limited formability of high-strength steel through cold forming, Hot Press Forming was developed to heat up a specially coated material to 900 ℃ for press forming and cool it down to produce a final product.
- The quenching of boron steel is performed within Hot Forming and the cooling system design of Hot forming is the main technology.
![20210518008](http://www.shym.co.kr/en/wp-content/uploads/sites/2/2021/05/20210518008.png)

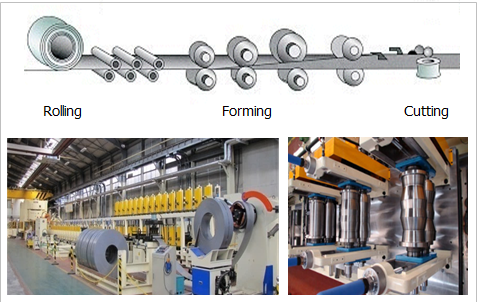

ROLL FORMING |
- A continuous auto-process of inserting and extracting material between Rolls and Press.
- A simple and improved method to switch to a new vehicle production by using exchangeable Cassette Type Roll, easy for a switching production of different models, improving accuracy and lowering risks.
![20210518009](http://www.shym.co.kr/en/wp-content/uploads/sites/2/2021/05/20210518009.png)

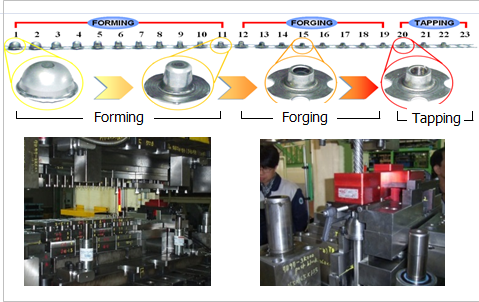

TAPPING PLATE |
- Compared to a conventional previous assembled product with bracket and nut, it has higher security and productivity with continuous process removing a defect risk of missing nut.
- Obtained a patent for new production technology, 14th OVER DR PROCESS, developed by the company’s own R&D technology.
- Certified supplier to Mercedes Benz AG
